Wash Rack Filtration
Wash rack filtration is the mechanical core of any compliant water recycling system. Every contaminant that leaves a vehicle, a plow truck, a concrete mixer, a fuel tanker, carries into the water. Filtration is how you get it back out.
Without effective filtration, recycled washwater degrades. Solids accumulate. Pumps and nozzles wear faster. Cleaning performance drops. And the water you are legally obligated to manage no longer meets the parameters your permit requires.
How Wash Rack Filtration Works
Filtration happens in stages, not in a single pass. Each stage targets a different particle size and contaminant type.
Coarse screening removes large debris, grit, and solid waste before water enters the primary treatment train. This protects downstream equipment from premature wear and blockage.
Sedimentation allows suspended solids to settle under gravity. A properly sized settling chamber reduces total suspended solids (TSS) from the raw washwater range of 100 to 1,000 mg/L down to below 100 mg/L before the water moves forward.
Multi-media filtration, typically sand, gravel, and anthracite, takes TSS below 20 mg/L. This stage handles the mid-range particles that sedimentation misses.
Polishing filtration finishes the job. Activated carbon and fine polishing filters bring TSS to the final target of below 5 mg/L and reduce chemical oxygen demand (COD), odors, and residual hydrocarbons.
For operations requiring spot-free rinse capability, additional treatment using reverse osmosis or ion exchange drives total dissolved solids (TDS) below 50 mg/L.
For more detail on the specific water quality targets each filtration stage supports, see our washwater treatment targets page.
What Filtration Has to Handle
The contamination profile varies by operation. A municipal plow truck brings road salt, brine, and deicing chemicals. An oil field service vehicle carries petroleum residue and drilling fluid. A concrete mixer delivers alkaline slurry. A military tactical vehicle may carry a combination of all three.
A properly designed wash rack filtration system accounts for the specific vehicles in your fleet, not a generic vehicle class. Filtration media selection, vessel sizing, and flow rates are all specified around your actual contamination load.
Undersized or poorly matched filtration creates compliance problems. Water that does not meet discharge requirements before leaving your site puts your NPDES permit at risk. Regulators do not accept equipment failure as a variance.
Wash Water Filtration

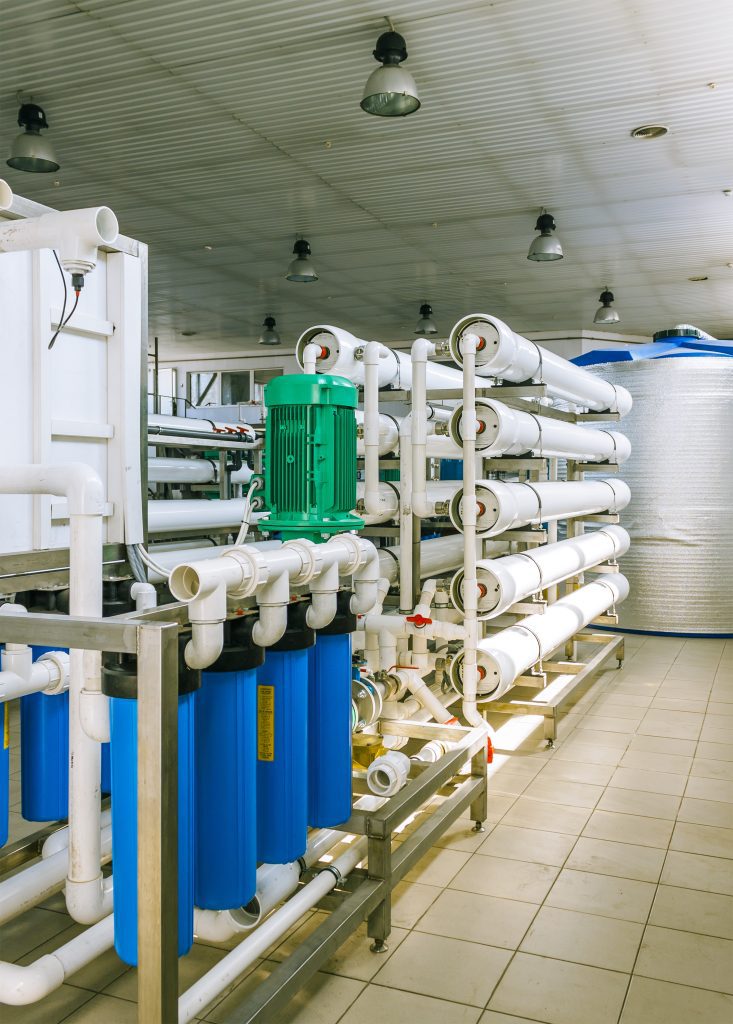

installation of industrial membrane devices water treatment based on reverse osmosis system
Maintenance and Monitoring
Filtration systems require routine maintenance. Media requires periodic backwashing or replacement. Filter vessels need inspection for bypass and channeling. Flow rates and pressure differentials should be monitored to identify when media performance is degrading.
Operators who skip maintenance cycles find out at the worst time, during an inspection or after a discharge violation. The EPA’s vehicle and equipment washing best management practices document at https://www.epa.gov/system/files/documents/2021-11/bmp-municipal-vehicle-and-equipment-washing.pdf outlines the monitoring expectations regulators apply to wash operations.
What Compliant Washing Delivers
A wash rack filtration system built to your operation handles your contamination load, meets your discharge targets, and supports the compliance documentation your permit requires. It also protects your capital equipment. Pumps, nozzles, and spray heads last longer when the water running through them is clean.
The operation that invests in properly designed wash rack filtration keeps its permit, its equipment, and its budget intact. The one that cuts corners on filtration pays in repair costs, permit violations, and the kind of regulatory exposure that does not appear on any balance sheet until it is too late
